¶ Basic LED (Upgraded with Hafele System)
¶ Effective July 1, 2025, all orders submitted for Design Check will be subject to the following change:
¶ Basic LED system updated from 12V to 24V (Hafele System), for the following Benefits:
- Lower Current = Less Voltage Drop: 24V systems draw half the current of 12V systems for the same power output.
- Better Efficiency: Lower current = less heat = more efficient and often longer-lasting components.
- Longer Runs Without Dimming: You can run longer lengths of LED strip without needing to inject power as often.
- Possibility for more options for LED sensor and drawer LED and other LED features in future
- Standardized power supply component, for better inventory management
- Extended Warranty: Current LED Warranty 2 years, 24V Hafele LED Warranty 5 years.
- (Note: The 24V LED is priced at double of the 12V LED.)
¶ Basic Product information:
- Color Temperature Option:
- Warm White 3000K (Default)
- Natural White 4000K
- Voltage: 24 Volts
- Wattage: 70 watts
- Number of LED: 336LEDs/m
- Power Consumption: 8W/m
- Luminance:
- 3000K：60-90LM/Watt (480-720LM/m)
- 4000K ：65-100LM/Watt (520-800LM/m)
- Profile color: Silver, Diffuser Color: White
¶ Switch Options
 |
 |
| Default: Remote Controller, with dimmer function | Optional: Motion Detector, for Toe-kick LED |
|
|
¶ Other Option (Not Provide by Ronbow)
 |
| *Wall Switch |
| (*Note: NOT provide by Ronbow, Dimmer function does NOT work when using the Wall Switch) |
¶ Basic LED Installation Guide
How to connect LED power supply and remote controller
¶ Gola LED
- When Gola LED is selected, installation must be done by the Ronbow installation team.
¶ Luxury Slim LED
¶ Product information:
- Currently only available in the Versa Closet System
- Color Temperature Option:
- Warm White 3000K (Default)
- Natural White 4000K
- Voltage: 24 Volts
- Wattage: 40 watts
- Number of LED: 504 LEDs/m
- Luminance: 5000 Lumens
- Profile color: Black, Diffuser Color: White
- *Note: When the Slim LED is selected, the cabinet back panel will be inset ¾", to hide the LED wire behind the cabinet.
¶ Switch Options
 |
 |

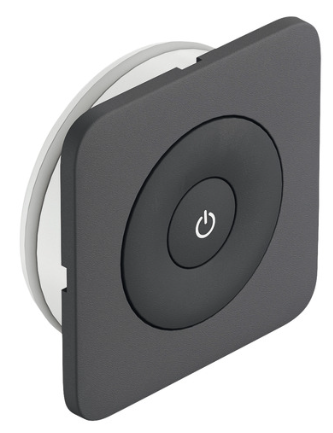

| Default: Multifunctional Dimmer Switch | Drawer Sensor Switch |
|
|
¶ Coming Soon…
 |
 |
| Motion Detector | Wall-Mounted Push Button |
|
|
 |
 |
 |
|
Door Sensor: Dimmer Switch, touch-free (Available when LED Door Sensor is selected) |
Dimmer Switch, with touch function | Touch-Free, Hidden Dimmer Switch |
|
|
|
¶ Other Option (Not Provide by Ronbow)
|
|
| *Wall Switch |
| (*Note: NOT provide by Ronbow, Dimmer function does NOT work when using the Wall Switch) |
¶ Slim LED Installation Guide
