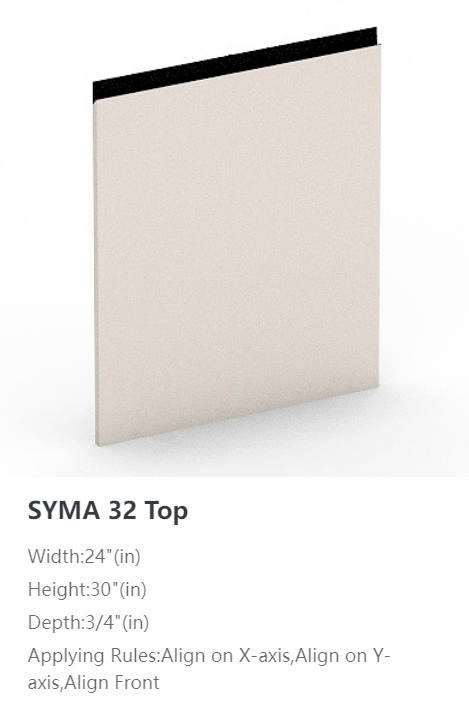

¶ Syma 32
- Available in regular door/drawer cabinet

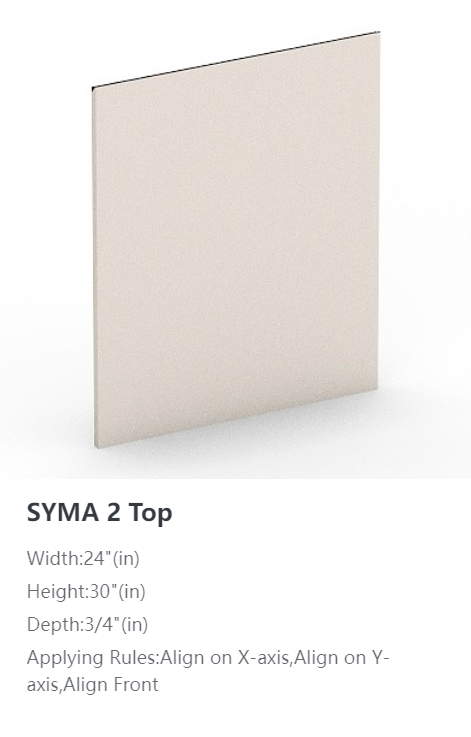

¶ Syma 2
- Available in cabinet w/ Flat Gola option
¶ Syma for Base 3 Drawer Cabinet (B3W)
- For the B3W with Syma Profile, the top edge of the top drawer will have the Syma 32, the bottom edge of the middle drawer will have the Syma2, and the top edge of the bottom drawer will have the Syma 32. Which will align with B2W with Syma, when Drawer Front configuration is selected as "EQ_DIVIDE_TOP" in DS.
¶ NOT Available for Cabinets:
- Wall Cabinets
- B4W
- All the panels except “Panel Front”
- 90 Degree base corner
- Tall Cabinets
- Appliance Cabinets
- B2W_1GOLA (w/ Flat Gola)
- B3W_2GOLA (w/ Flat Gola)
- B3W_2GOLA_C (w/ Flat Gola)
- B1W1D_1GOLA (w/ Flat Gola)
- B2W_1GOLA_APRON (w/ Flat Gola)
- *B1D_ACCESSORY and B1W1D_ACCESSORY w/ KB Base Pull out
*Note: For Base accessory cabinet “B1D_ACCESSORY” and “B1W1D_ACCESSORY” Syma Door profile Does not work with with the KB_Base Pullout Accessories. Due to the top mounting point on the door conflicts with the Syma system:
|
|
|
|
| KB_DISPENSA | KB_YouBoxx Set | KB_Baker's Tray Organizer |
¶ Finishes
 |
 |
 |
 |
 |
|

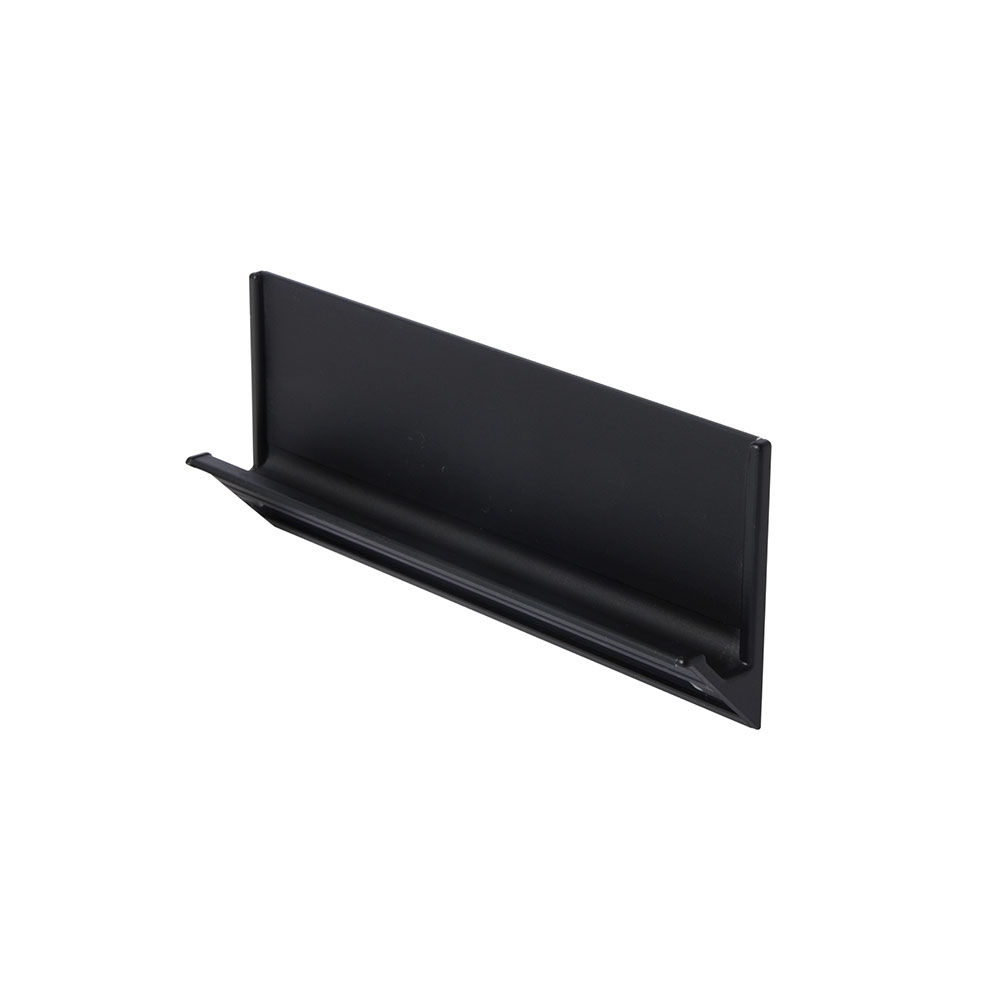

Matte Black |

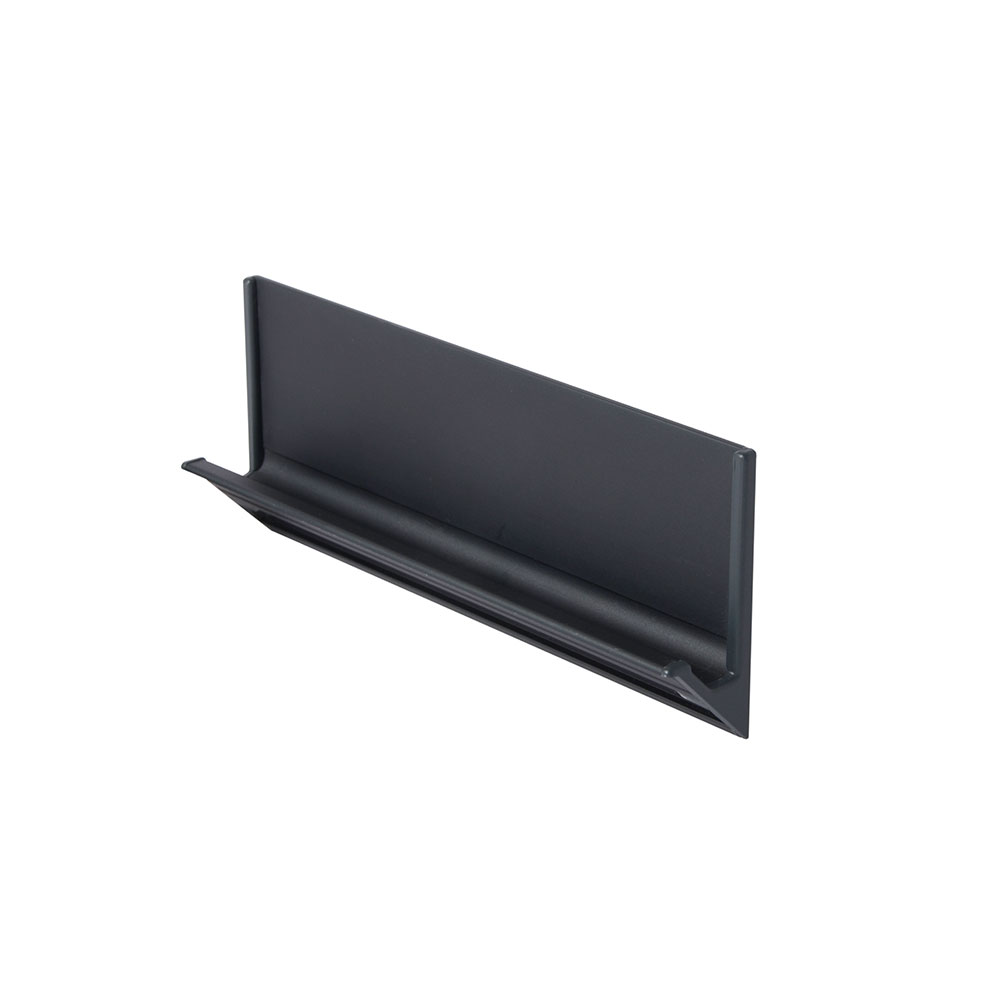

Anthracite |
Matte Inox |

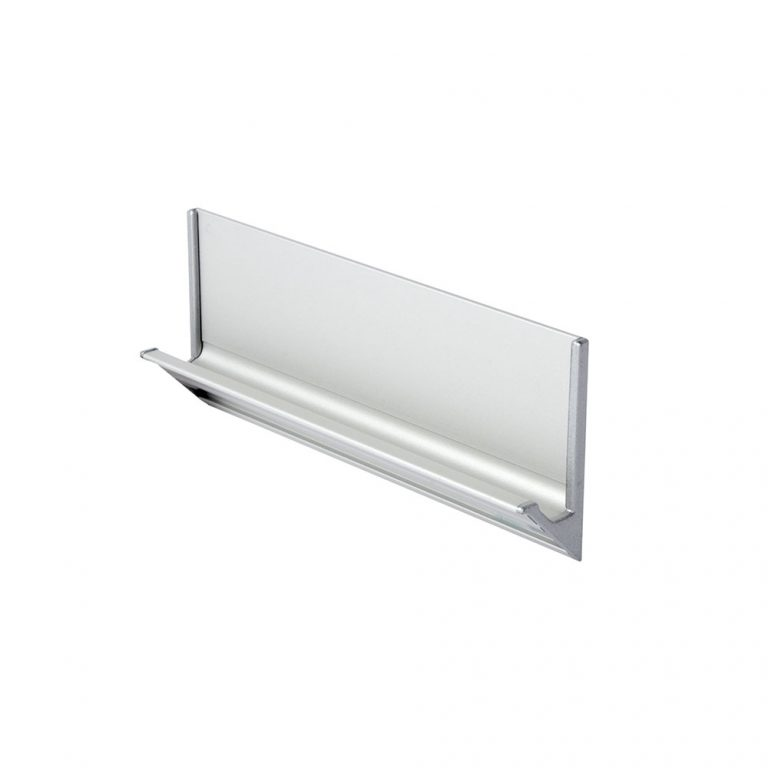

Matte Silver |
Matte Gold |
¶ Design Studio
¶ To change the Syma Color for Drawer Cabinets
- You will see the “Syma Color” option under Style Replacement, once the Syma profile is selected.
¶ To change the Syma Color for Door Cabinets
- Go to “Resource Manager”
- Locate the cabinet that needs the modification
- In the drop down menu, Click on the “DOOR SET”
- On the right hand side, go to “Style Replacement”
- You will see the option to change the Syma Color
