¶ Appliance Cabinet
- Designed for built-in appliance, such as oven, microwave, warming drawer, coffee machine and etc.
- The cabinet width will automatically adjust based on the selected appliance.
For Tall Appliance Cabinets:
- #CO (1CO, 2CO, or 3CO) means the number of the appliance cut-out
- Each Appliance cut-out fix one appliance (one appliance model #)
- There is no back panel on the appliance cut-out section
- There is a fixed shelf in between each appliance cut-out
¶ Category

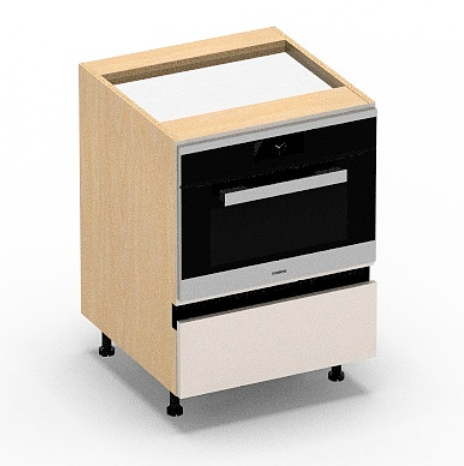

¶ Base Appliance Cabinet
 |
 |
 |
 |

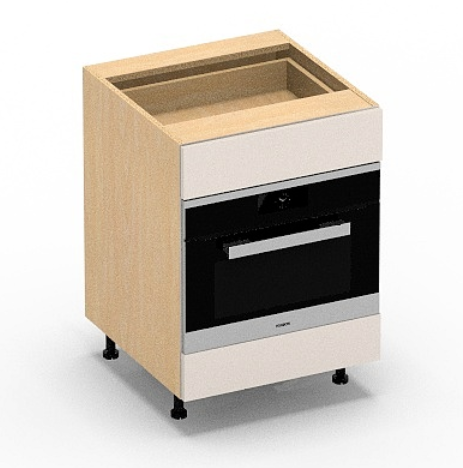

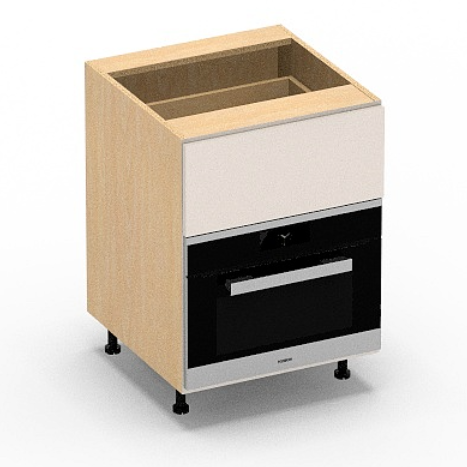

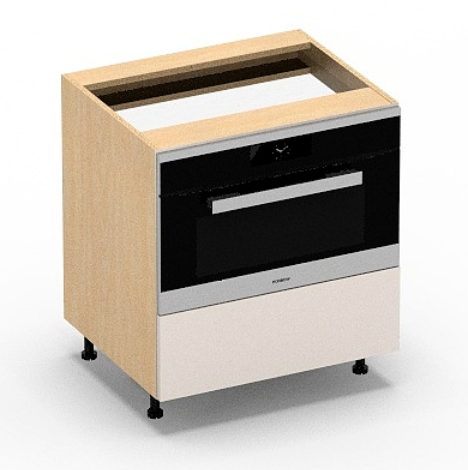

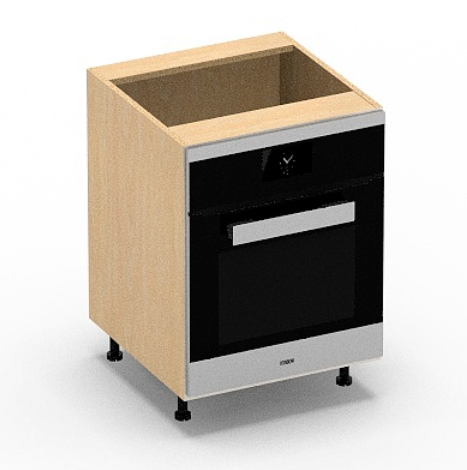

| BAPP | BAPP_1W_TOP (*NOTE: Top drawer can be change to Fales Front when needed) |
BAPP_FILLER_TOP (*NOTE: Filler Height 3", installer will have to modify the filler on site. Use BAPP_1W_TOP, when filler space is greater than 3") |
BAPP_2W |
 |
 |
 |
|
| BAPP_GOLA |
BAPP_GOLA_FILLER_TOP (*Note: Bottom Drawer Height can be modified to align with adjacent cabinets, top filler height will be calculate Automatically. ) |
BAPP_1W_Filler Top |
¶ Tall Appliance Cabinet
 |
 |
 |
 |

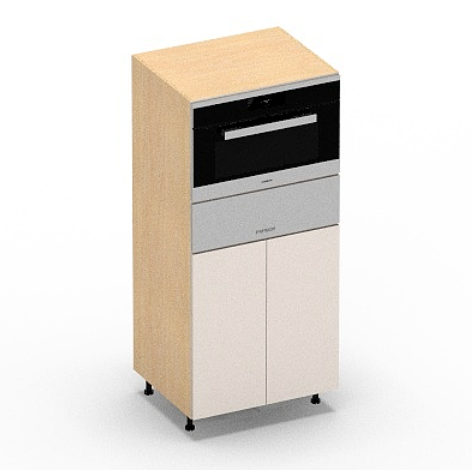

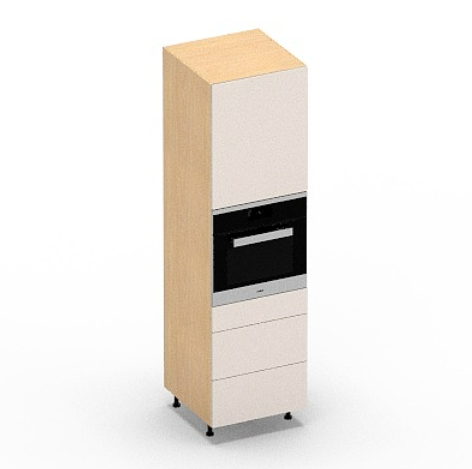

| TALLAPP_1CO | TALLAPP_1CO_1W | TALLAPP_1CO_2W | TALLAPP_1CO_3W |
 |
 |
 |
 |

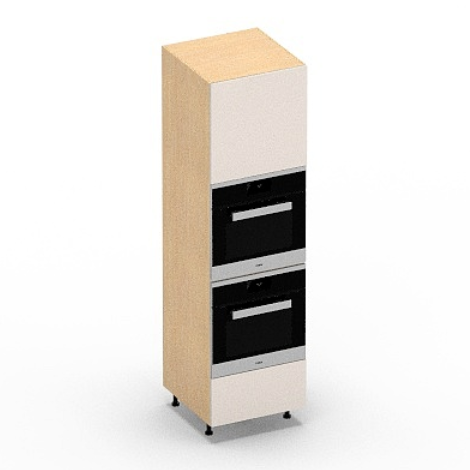

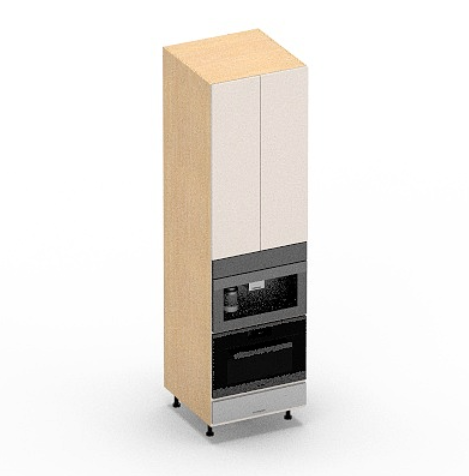

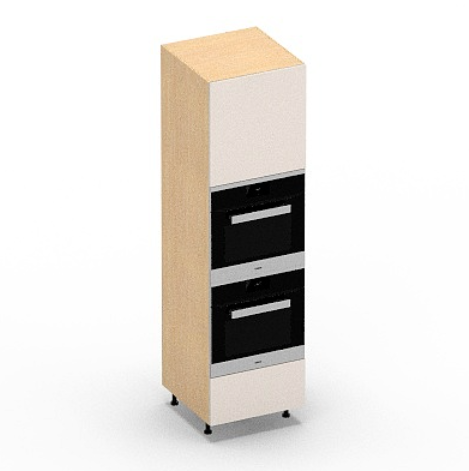

| TALLAPP_2CO_1W | TALLAPP_2CO_1W_HK | TALLAPP_2CO_2W | TALLAPP_2CO_3W |
 |
 |
|
|

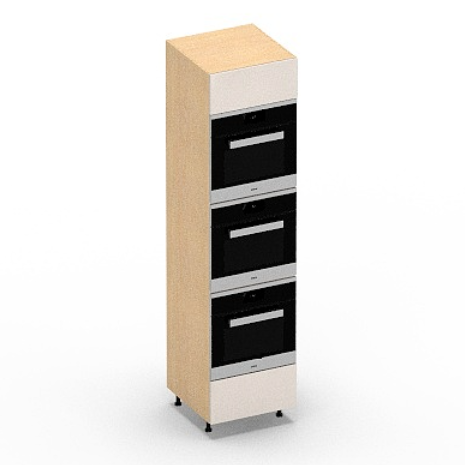

| TALLAPP_3CO_1W (*NOTE: The top door can be changed to HK Flap Up door, by changing the “DOOR CONFIG” ) |
TALLAPP_3CO_1D |
¶ Tall Appliance Cabinet (STACK)
- Tall Appliance STACK cabinets are NOT designed for Floating use and can NOT be use as a wall cabinet.
- These cabinets has to be either on the floor with Leg Levelers, or it has to be stack on top of another cabinet.
 |
 |
 |

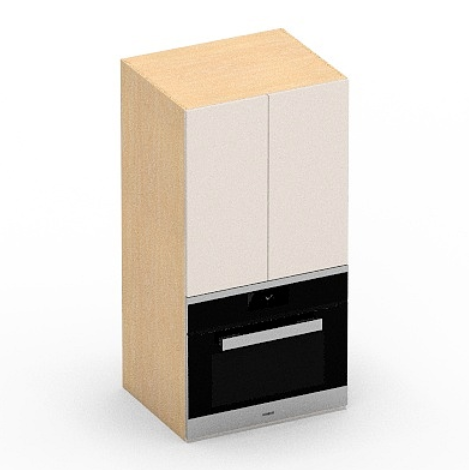

| TALLAPP_1CO_1D_STACK (*NOTE: Use as top section. The top door can be changed to HK Flap Up door, by changing the “DOOR CONFIG” ) |
TALLAPP_1CO_STACK (*NOTE: Make sure to select the cabinet body Edgeband Color on this cabinet, to ensure the edgeband color matches with the rest of the cabinets in the project. ) |
TALLAPP_1D_2CO_STACK |
 |
 |
 |
| TALLAPP_2CO_1D_STACK | TALLAPP_2CO_1W_STACK | TALLAPP_2CO_3W_STACK |
 |
 |
|
| TALLAPP_1CO_2W_STACK | TALLAPP_2CO_2W_STACK |
¶ Appliance Request Form
For any built-in appliance that is not available in Design Studio, please Submit the new appliance form as soon as you get the appliance info from your client.
¶ Cabinet Features

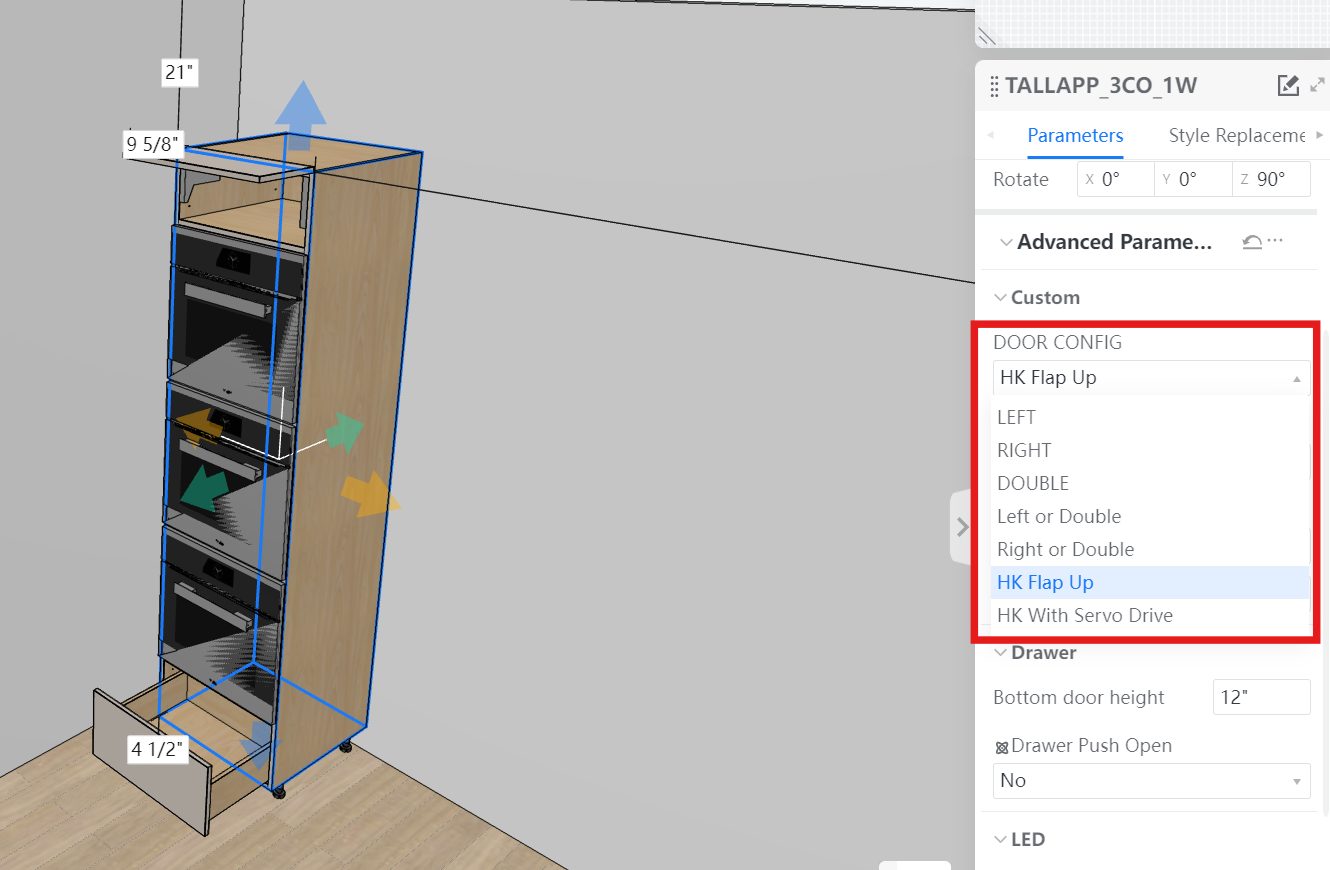

¶ TALLAPP_3CO_1W
The top door can be changed to HK Flap Up door, by changing the “DOOR CONFIG”
¶ Appliance Cabinet Bottom Drawer Align
To ensure proper alignment between the bottom drawer of the Appliance Tall cabinet and the adjacent base cabinet, adjust the "Bottom Door Height" to match the height of the base cabinet bottom drawer. Additionally, consider the cabinet reveals during this adjustment. Please refer to the drawer height reference chart::
Please see the next two pages for the drawer height reference chart for:
- Cabinet Carcass Height: 30" (With Standard Cabinet Reveal, without Gola)
- Cabinet Carcass Height: 30.5" (With Standard Cabinet Reveal, without Gola)
To ensure proper alignment between the bottom drawer of the Appliance Tall cabinet and the adjacent base cabinet, adjust the "Bottom Door Height" to match the height of the base cabinet bottom drawer. Additionally, consider the cabinet reveals during this adjustment. Please refer to the drawer height reference chart:
Please see the next two pages for the drawer height reference chart for:
- Cabinet Carcass Height: 30" (With Standard Cabinet Reveal, with Gola)
- Cabinet Carcass Height: 30.5" (With Standard Cabinet Reveal, with Gola)
