¶ Two Steps of using Vertical Gola in Design Studio:
- Select Gola Position
- Select Gola Channel

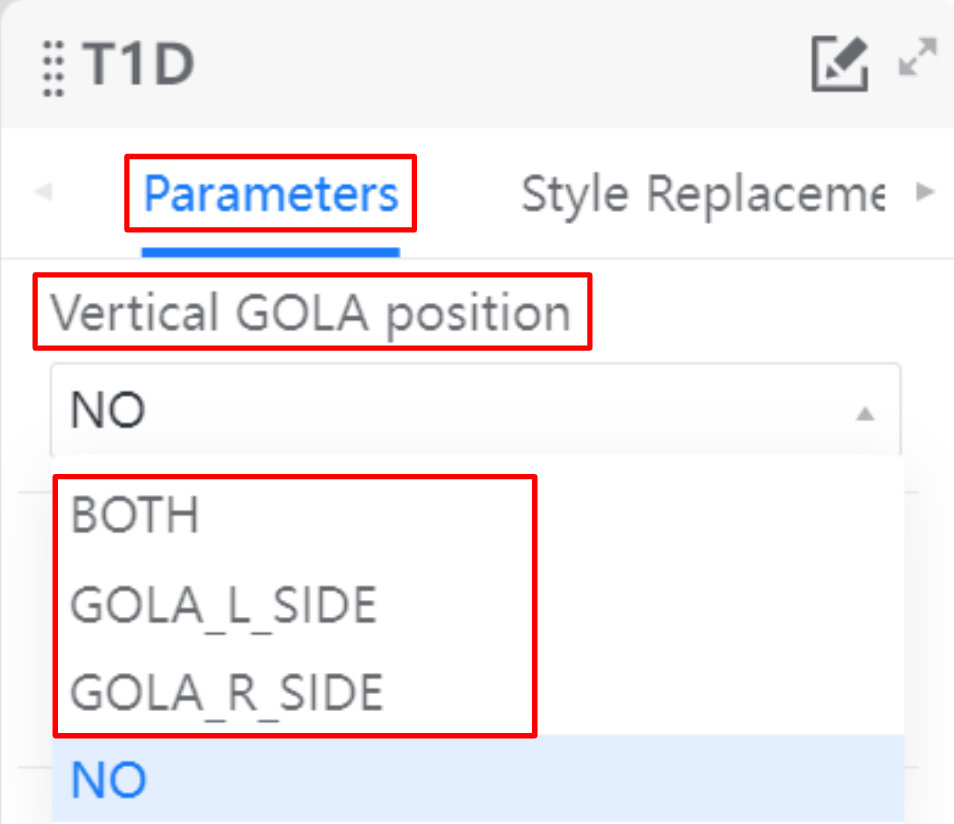

¶ Vertical Gola Option can be found under Tall Cabinet:
- “Parameters”
- “Vertical GOLA position”
¶ Vertical Gola Position:

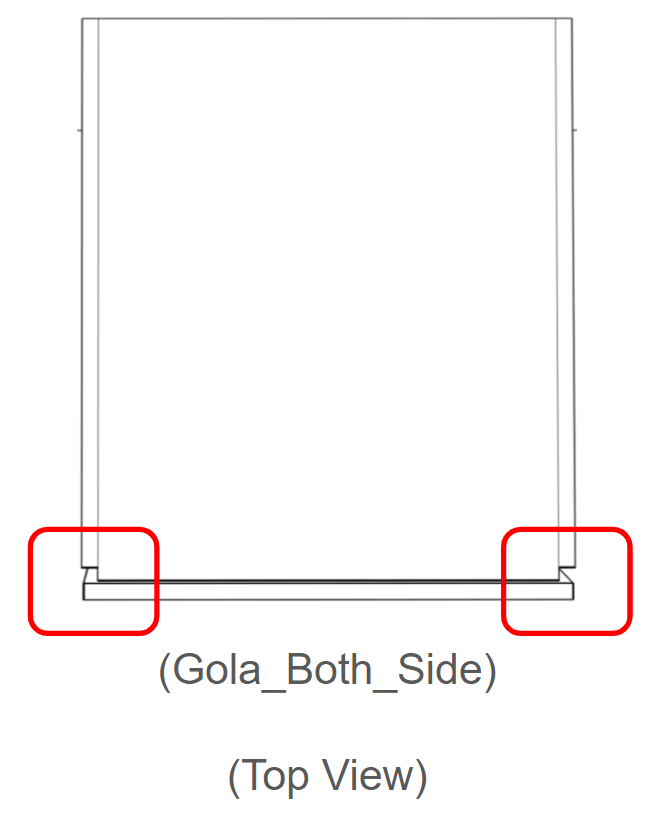

- Both:
- Gola notch on both left & Right cabinet side panels
- Door Configuration can be either Left or Right

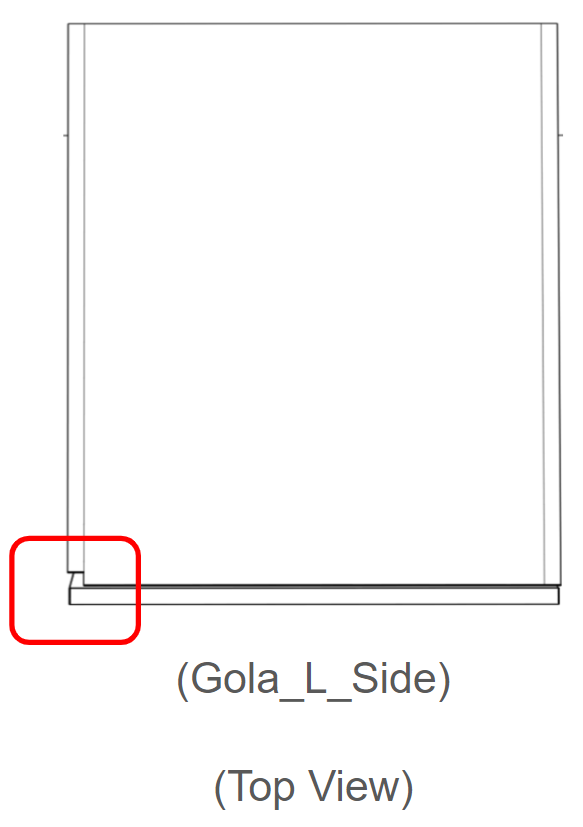

- Gola L Side:
- Gola notch on cabinet left side panel
- Door Configuration will be Right Side only

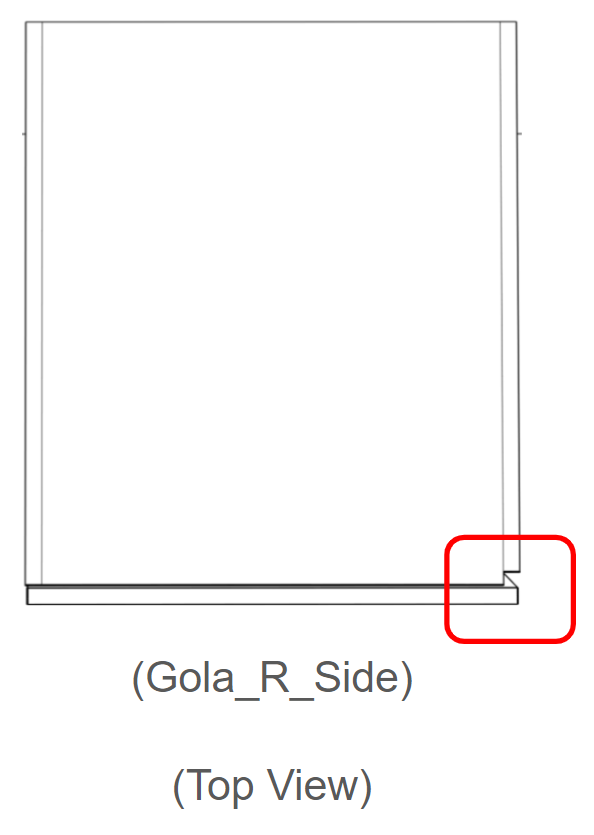

- Gola R Side:
- Gola notch on cabinet right side panel
- Door Configuration will be Left Side only

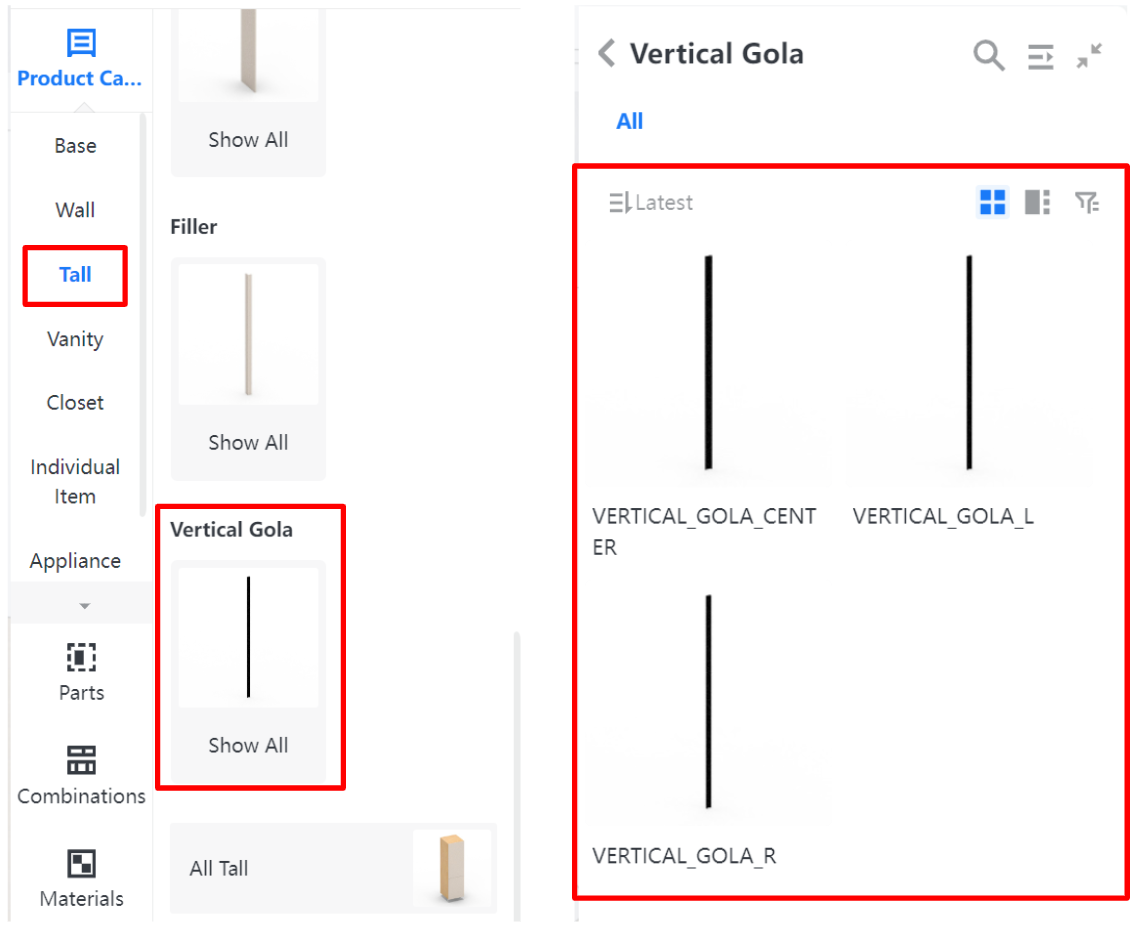

¶ Vertical Gola Channel can be found under:
- “Tall”
- “Vertical Gola”
¶ Different Type of the Vertical Gola Channel:
- Vertical Gola Center:
- Can be install on both Left and right side of the cabinets
- Only use when Gola Channel is in between cabinets
- Vertical Gola L:
- Only install on the Left side of the cabinet, with Gola Position L
- Only use when the left side of the cabinet is a End Panel or Filler
- Vertical Gola R:
- Only install on the Right side of the cabinet, with Gola Position R
- Only use when the Right side of the cabinet is a End Panel or Filler
¶ Vertical Gola Gap
Gola Space between cabinets / panel is 1-¼” wide.
¶ Vertical Gola Design Tip
- Vertical Gola is only available with single side open Door, NOT available with double side open doors.
- The opposite side of the hinge side must have a Gola
- There will be a Error message when the Door Configuration is not correct.

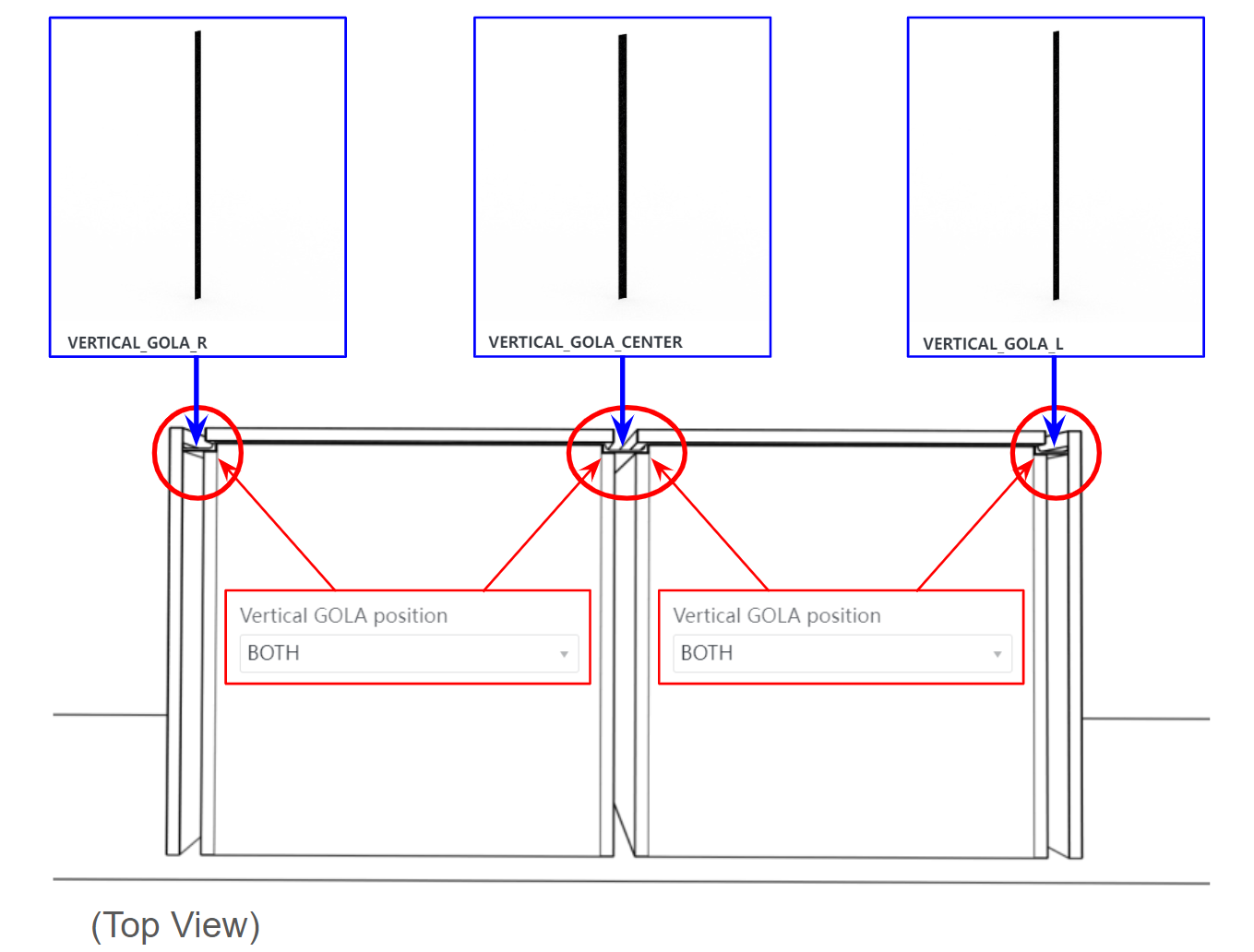

- When installing the Vertical Gola between cabinets, make sure that the “Vertical GOLA position” is chosen for both cabinets, and utilize the "VERTICAL GOLA CENTER" Channel located between the cabinets. (Please see the example shown below)
